Product Description:
FA LENS NEW ALERT!
5MEGA PIXEL compact DESIGN
C mount lens for 1/1.8" sensor CCD.
Super Wide angle of view.
| SPECIFICATIONS | ||
| Model No.,: | ID04528MHR | |
| Imager Size: | 1/1.8" | |
| Mount Type: | C | |
| Focal-Length: | 4.5mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | 1/1.8" | 89.0°(D)*81.9°(H)*52.3°(V) |
| 1/2" | 82.8°(D)*76.1°(H)*47.5°(V) | |
| 1/2.5" | 77.4°(D)*70.2°(H)*43.2°(V) | |
| TTL | 59.9mm | |
| M.O.D: | 0.1m | |
| Focus Operation : | Manual | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Manual | |
| Back Focus: | 8.4mm | |
| Distortion（%） | ﹤1.2% | |
| Working Wavelength | 400-700nm | |
| Optical Element | 11G | |
| Relative Illumination | >0.45 | |
| Dimension(mm): | Φ44×59.9mm | |

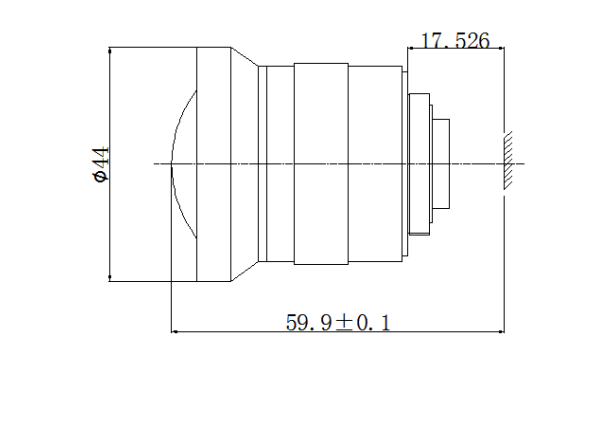

Lens drawing:
