Description

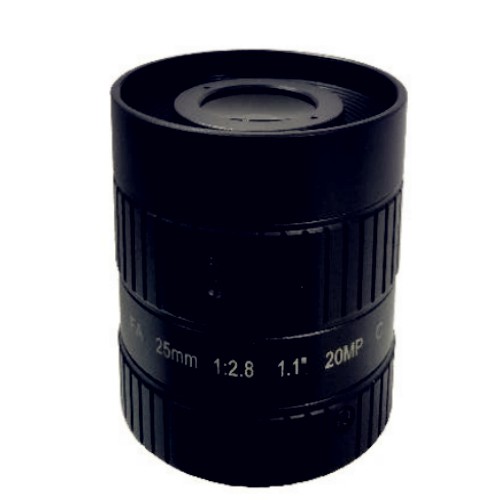

20MP Lens for Sensor 1.1''
Ultra Resolution Up to 20Mp.
Super Low distortion Lens.
| SPECIFICATIONS | ||
| Model No.,: | ID2528MHR-1.1 | |
| Imager Size: | 1.1" | |
| Mount Type: | C | |
| Focal-Length: | 25mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | D | 32.7° |
| H | 26.4° | |
| V | 19.9° | |
| Distortion（%） | 0.50% | |
| CRA | <8.5° | |
| Resolution | 20Mega Pixel | |
| M.O.D: | 0.2m | |
| Focus Operation : | Manual | |
| Zoom Operation : | / | |
| Iris Operation : | Manual | |
| Back Focus(Mechanism): | >11.3mm | |
| Weight(g) | 126g | |
| Dimension(mm): | Φ39×54.2mm | |
