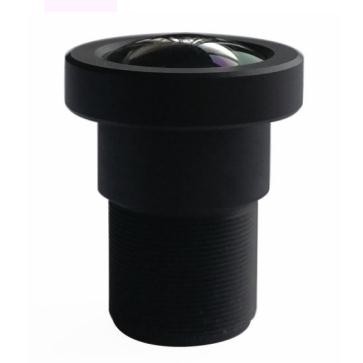

Description
- 4K Resolution
- Low distortion Lens S mount.
- for big sensor 1/1.8''
- good for facial ID and scanning system,AI
|
SPECIFICATIONS |
||
| Model Number | ID0820FBHR | |
| Imager Size: | 1/1.7" | |
| Mount Type: | M12 | |
| Focal-Length: | 8mm | |
| Aperture Range: | F2.0 | |
| Field of View ： ( DxHxV) | 1/1.7" (Φ9x7.2x5.4) | |
| D | 60.8° | |
| H | 50.8° | |
| V | 38.6° | |
| M.O.D: | 0.1m | |
| Distortion(%) | -2% | |
| CRA | <13.83% | |
| Optic BFL | 6.06mm in air | |
| Mechanical BFL | 5.332mm in air | |
| Iris Operation : | Fixed | |
| Resolution | 8Mega Pixel | |
| Dimension(mm): | Φ18.7×29.24 | |
