Description

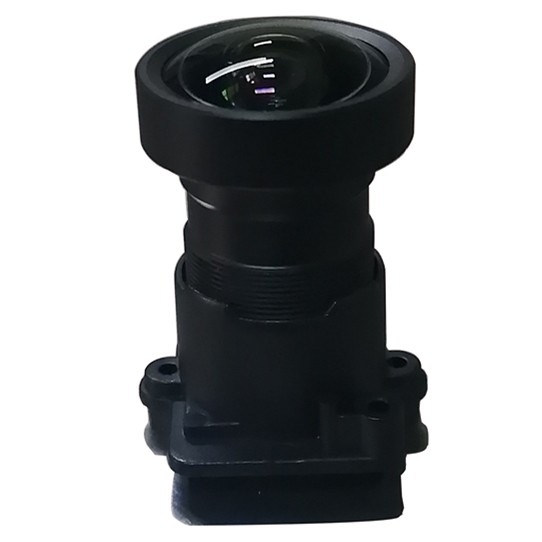

- 16 Ultra Low Distortion Lens S mount
- For sensor 1/2.3" cameras
- Applied for Facial recognition & Security & Scanning
- Good performance
|
SPECIFICATIONS |
|||
| Model Number | ID03825FBHR | ||
| Imager Size: | 1/2.3" (IMX577) | ||
| Max Image circle | Φ8.1 | ||
| Mount Type: | M12 | ||
| Focal-Length: | 3.8mm | ||
| Aperture Range: | F2.5 | ||
| Field of View ： ( DxHxV) | D | 94.6° | |
| H | 83.5° | ||
| V | 66° | ||
| M.O.D: | 0.1m | ||
| Distortion(%) | < -1% | ||
| CRA | <5° | ||
| Optic TTL | 3.74mm in air | ||
| Mechanical BFL | 2.6mm in air | ||
| Iris Operation : | Fixed | ||
| Resolution | 16Mega Pixel | ||
| Dimension(mm): | Φ17.25×25.2 | ||
| Optical Element | 8G | ||
| IR Correction | YES | ||
